Specifications

Key Features

• Air-Cooled Spindle: Ensures efficient operation during prolonged use.
• 2D/3D-HD Capability: Ideal for a variety of engraving and routing tasks.
• Gear Box: Advanced planetary gearbox for high-quality carving.
• Linear Guideways:
  • Taiwan-made 25mm LM guideways for high positional accuracy and long-lasting motion.
• Heavy Duty Frame: Built for durability with a welded frame design.
• Anti-Vibration Rubber Pads: Heavy-duty pads to minimize vibrations and enhance precision.

Performance

• Axis Speed: Optimal speed in all directions (X, Y, Z) for efficient production.
• Spindle: High-capacity HQD/HSD Italian spindle for trouble-free operation.
• Servo Drive System: Recognized for efficiency and precision.
• Lubrication System: Periodic lubrication maintenance to ensure smooth operation.
• Axis Drive System:
  • X, Y: Rack
  • Z: Ball Screw

Working Table

• Material: Rigid PVC sheet for the longevity of the aluminum T-slot table.

Additional Features

• High Precision Rack & Pinion: For enhanced motion control (TM HIWIN).
• Hand Held Controller: User-friendly control interface.
• Automatic Z Tool Calibration: Facilitates easy setup and adjustments.
• Servo Alarm System: Alerts for operational efficiency.
• Motor Options: Available in 3.5KW, 4.5KW, and 6KW configurations.

---

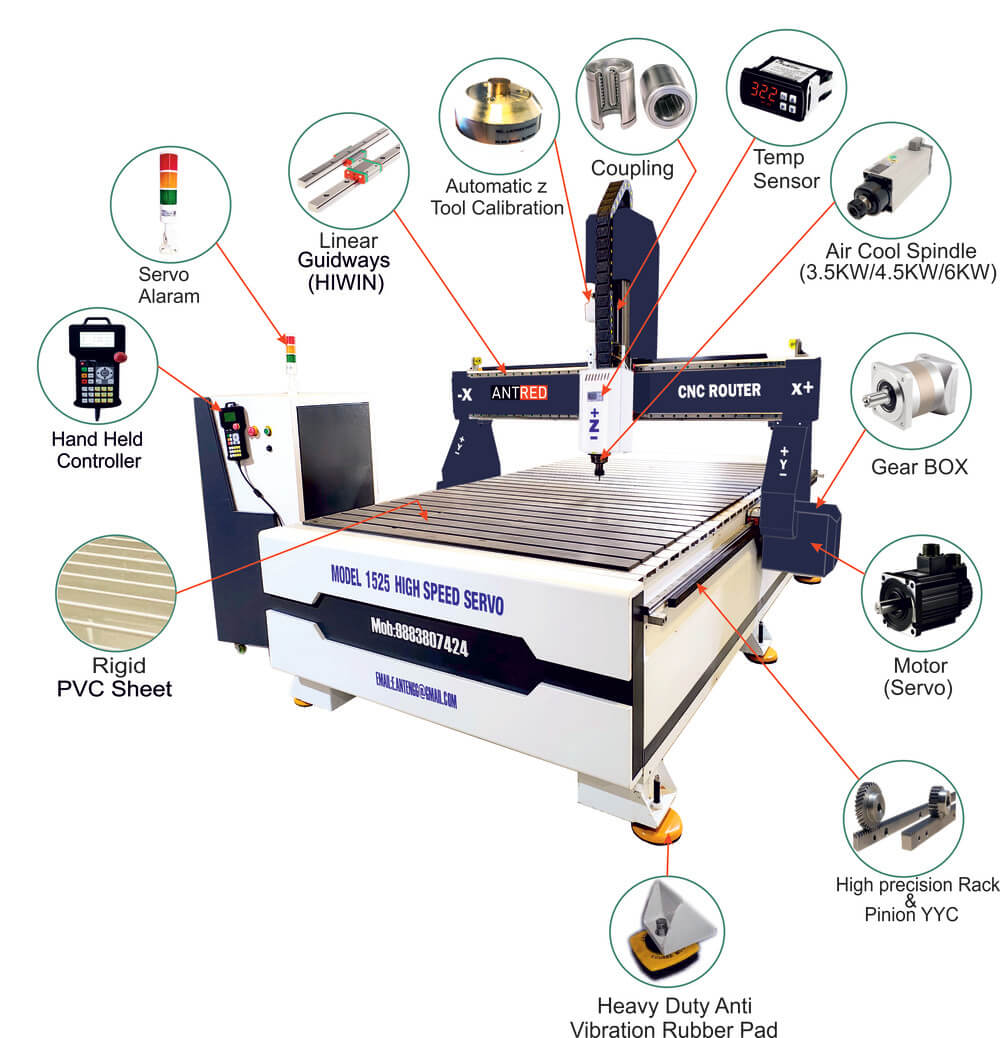

This CNC Engraving & Router Machine combines advanced technology with user-centric features, making it a reliable choice for detailed and high-quality carving tasks.
