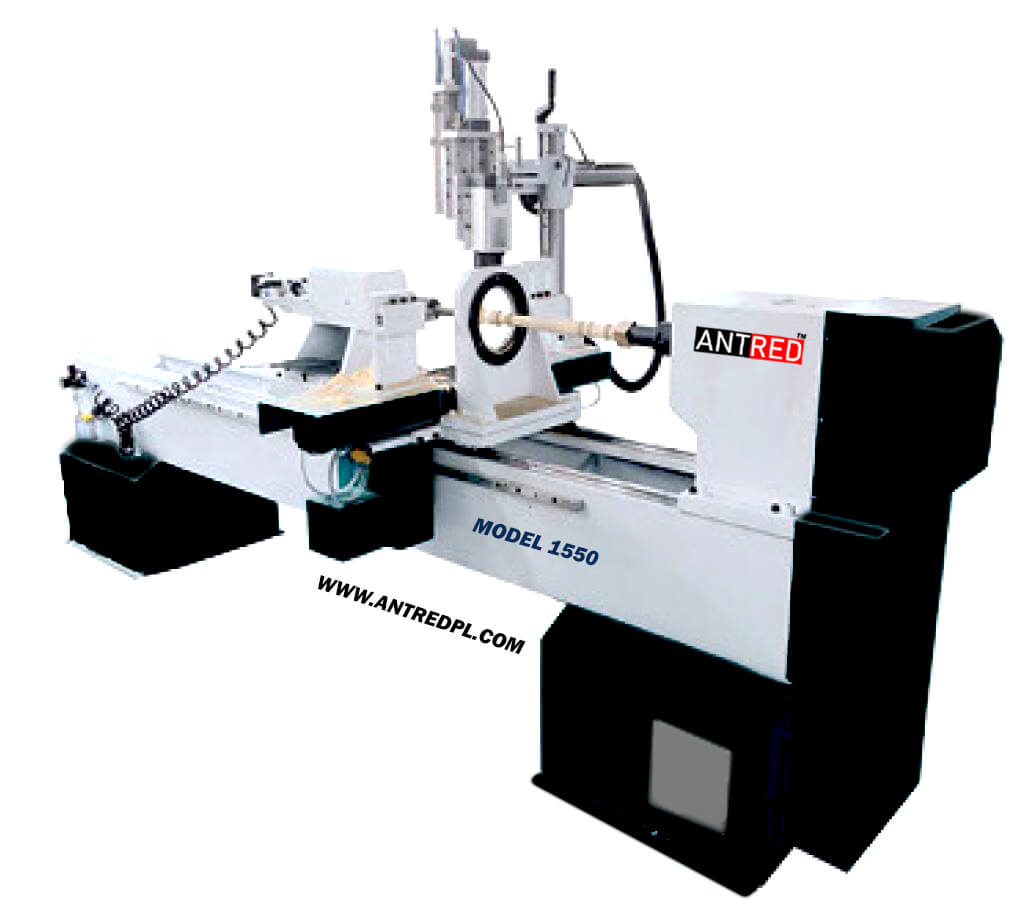

Introducing the ANTRED WL-1020/WL-1530, a state-of-the-art machine designed for precision wood turning and engraving. This robust equipment is built with a seamless welded steel structure, ensuring stability and durability that won't deform over time. Ideal for creating wooden components like table legs and stair railings, the ANTRED WL series is engineered for high-performance applications.
Equipped with advanced German ball screws and Taiwan HIWIN helical square guide rails, this machine guarantees precision and longevity, making it a reliable choice for your workshop. It is compatible with popular CAD/CAM design software such as Type3 and ArtCAM, allowing for seamless integration into your design process.
The rotating speed is adjustable via an inverter, and with the addition of a spindle, the ANTRED WL can perform turning, broaching, and engraving—all in one machine. Experience efficiency with one-time tool setting that completes the entire workpiece in a single setup. Achieve high-speed operations without compromising quality.
Advantages
- Welded Seamless Steel Structure: Ensures a stable, non-deforming frame.
- Specialized for Woodwork: Perfect for wood turning and wooden cylinder engraving.
- Precision Components: Utilizes German ball screws and Taiwan HIWIN guide rails for high accuracy.
- Software Compatibility: Works with various CAD/CAM software including Type3 and ArtCAM.
- Adjustable Rotating Speed: Speed can be tailored using an inverter.
- Multi-Functionality: Capable of turning, broaching, and engraving with an optional spindle.
- One-Time Tool Setting: Complete the entire workpiece efficiently in one setup.
- High-Speed Performance: Achieves rapid turning, broaching, and engraving.
Technical Parameters
- Model: ANTRED WL-1020/WL-1530
- Max Processing Length: 1000/1500 mm (custom options available: 2000/2500/3000 mm)
- Max Turning Diameter: 200/300 mm
- Air Pressure: 0.6-0.8 Mpa
- Power Supply: AC 220/380V, Single/3 Phase, 50Hz/60Hz
- Main Shaft Rotating Speed: 0-3000 r/min
- Motor Power: 4 kW
- Optional Air Cooling Spindle Power: 3.5 kW
